उच्च गुणवत्ता
 |
| Place of Origin: | China |
| ब्रांड नाम: | JSHG |
| प्रमाणन: | ISO/CNAS/IAF/CA |
| Model Number: | HG-SP-110KV |
| Minimum Order Quantity: | One 40 HQ Container |
|---|---|
| मूल्य: | negotiation |
| Packaging Details: | * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data. |
| Delivery Time: | 2 weeks per container after PO / drawing / prepayment confirmed |
| Payment Terms: | L/C, T/T or Western Union |
| Supply Ability: | 3,000 Metric Tons per Month |
| आवेदन: | विद्युत पारेषण और वितरण लाइन | एक बार बनाने: | 16m एक बार संयुक्त बिना गठन |
|---|---|---|---|
| सामग्री: | Q235, Q345, Gr.50, Gr.65 | आकृति: | गोल / बहुभुज / शाही / ट्यूबलर / पतला |
| प्रकटन उपचार: | गरम-डुबकी जस्ती / चित्रकारी | वेल्डिंग: | एडब्ल्यूएस डी 1.1 के अनुसार, सीओ 2 वेल्डिंग या जलमग्न आर्क ऑटो विधियों |
| हाई लाइट: | electrical power poles,electrical transmission poles |
||
500Dan Taper Steel Power Transmission Poles 110 KV
Description:
| NEA STANDARD FOR STEEL POLES | ||||
| Height (ft) | 25 | 30 | 35 | 40 |
| Top Diameter (mm) | 120 | 127 | 127 | 127 |
| Butt Diameter (mm) | 152 | 226 | 248 | 317 |
| Thickness (mm) | 2.5 | 3 | 3 | 3 |
| Design Load (kg.) | 300 | 500 | 500 | 500 |
| Yield Stress (MPA) | 345 | 345 | 345 | 345 |
| Zinc Coating (microns) | 86 | 86 | 86 | 86 |

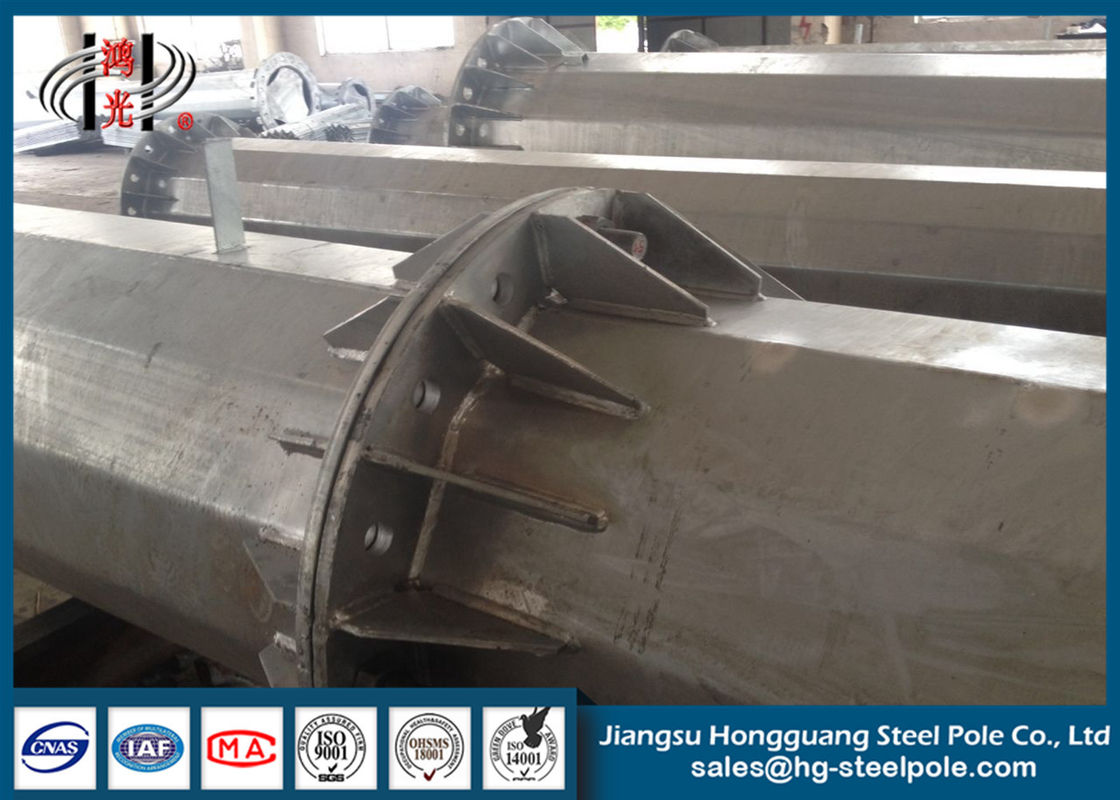

Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.
Raw Material :
All our raw material are purchased from famous mill factories in China to ensure the quality which provide MILL INSPECTION CERTIFICATE with official stamp and signiture. In addition, our QC stuff make material test and metal identification test before manufacturing.
Our Customers:
Company Profile
Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various steel poles. We manufacture a variety of products like transmission poles and substation structures for the power transmission industry; high masts and street lamp poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; microwave communication poles for the telecommunication industry; aero-generator supporting poles and street lamp poles.
Contact Us
Jiangsu Hongguang Steel Pole Co., Ltd.
Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
Fax: +86 510 878 435 28
Mobile: +86 138 615 059 69
If you want to learn more, please click here:
व्यक्ति से संपर्क करें: Zoe Tang
दूरभाष: +8613861505969
